Warp and cloth beams of steel tube, with the single end drive. But from
1600mm & Q type with double end drive.
Endless cloth beams construction: two PE coating beams and one steel tube can
keep the flatting surface of wire mesh and 24hours weaving without any stop. The

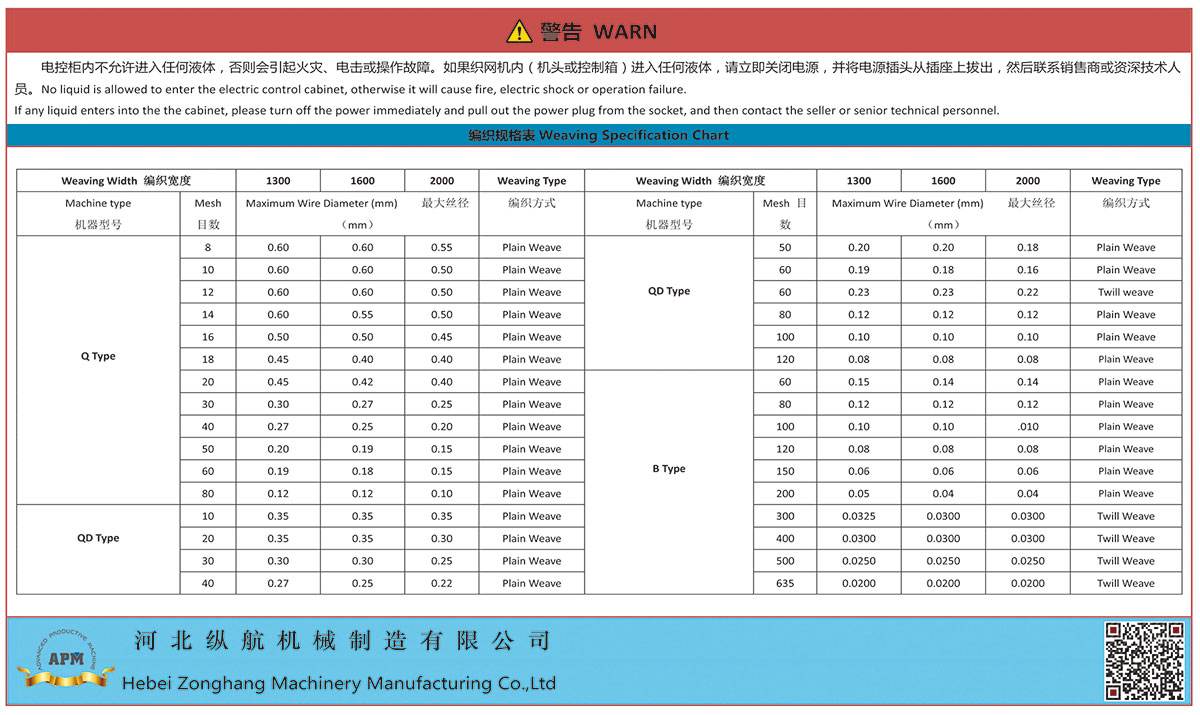

better weaving range is 40-250mesh with plain weave
Warp and cloth beams drive by servo motor: They are composed of reducer
+servo motor. Which is not only fully interpret the adjustment process of
Gear Wheel Regulator for accurate mesh adjustment on finest and heaviest
weaving. However full PLC control is no need. Servo motor with the reducer
control mesh size and the stable tension by calculating the feeding distance and
Wire diameter Shrinkage Rate.
Front and Rear Breast Rolls are adjustable so as to adjust the shed
correctly. Equipment of front breast roll with smoothing rail is possible.
Control of Heddle Frames by accurately milled cam segments which can be
easily exchanged, where by the shed height can always be adjusted suitably for
the rapier being used. the Shedders are small and surface of woven screens are
smooth. There is not any bright spot, bright trace and other effects on fine
screens. Or by the improved servo dobby.
Geared Flywheel Clutch for power return of slay can be supplied, if desired.
The operation is made from the weaver's position.
Slay Drive by toggle lever system; adjustment for single as well as small one
beat; shorter rest of slay as the shuttle-less rapier passes through.
Beat-up of Weft Wire: one beating at bottom edge of reed.
Shaft Bearings: all heavily loaded or high speed shafts urn in bronze bushes.
The driving shaft is provided with ball bearing and the crankshaft with ring
lubricator bearings.
Rapier Transmission Mechanism: the Carbon Fiber or Nylon rapier belt with
tooth profile rapier band can make the beating-up speed reach 120r/min. and
reduce the weaving voice.
CNC rapier: no need selvage wires and the double pulling weft wires action
to solve many weaving defects.
